1V 8104 Truck Air Spring Suitable for Firestone W01-M58-8104

1V 8104 Truck Air Spring Suitable for Firestone W01-M58-8104
1V 8104 Truck Air Spring Suitable for Firestone W01-M58-8104 1V 8104 Truck Air Spring Suitable for Firestone W01-M58-8104 1V 8104 Truck Air Spring Suitable for Firestone W01-M58-8104 1V 8104 Truck Air Spring Suitable for Firestone W01-M58-8104

Großes Bild :  1V 8104 Truck Air Spring Suitable for Firestone W01-M58-8104

Produktdetails:
Herkunftsort: China
Markenname: YITAO
Zertifizierung: IATF16949
Modellnummer: 1V 8104
Zahlung und Versand AGB:
Min Bestellmenge: 50
Preis: Negotiable in person
Verpackung Informationen: Karton
Lieferzeit: 30
Zahlungsbedingungen: T/T
Versorgungsmaterial-Fähigkeit: 5000 Stück/Monat
Kontakt

1V 8104 Truck Air Spring Suitable for Firestone W01-M58-8104

Beschreibung
OE-Nummer: W01-M58-8104,1T9L-11,1T19LB-12,TI9L OE NO2: SERIE C01-968-1163, TI9L SERIE C01-M58-1163
Typ: LKW-Luftfeder Anwendung: Für LKW-Luft-Suspendierung
Verpackung: Neutrale Packung oder maßgeschneiderte Packung Zustand: Neu
Garantie: 1 Jahr Min Bestellmenge: 50 Stück
Dichtungskonfiguration: Crimp-Abdeckplatte + vulkanisierte Dichtungsplatte Material: Gummi
Kolbenmaterial: Eisen
Hervorheben:

1V 8104 truck air spring

,

Firestone W01-M58-8104 air spring

,

truck air spring with warranty

1V 8104 Truck Air Spring Suitable for Firestone W01-M58-8104
1V 8104 Truck Air Spring manufactured to specifications matching Firestone W01-M58-8104. This air spring fully replaces the original equipment and provides your truck with a comfortable and stable ride.
Cross References
Brand Reference Numbers Numbering Discrepancy
Firestone W01-M58-8104 W01 M58 8104/W01M588104/W01M58-8104/W01-M588104/W01-M58-8104
Firestone 1T9L-11 / 1T19LB-12 1T9L 11 1T19LB 12/1T9L111T19LB12/1T9L-11/1T19LB-12
Firestone T19L SERIES C01-968-1163 T19L SERIES C01 968 1163/T19LSERIESC019681163/T19L SERIES C01-968-1163
Firestone T19L SERIES C01-M58-1163 T19L SERIES C01 M58 1163/T19LSERIESC01M581163/T19L SERIES C01-M58-1163
Technical Specifications
Specifications Parameters
Outer diameter φ265
Weight 17.176 kg
Package Dimensions 30*30*43.5cm
Natural height 735mm
Maximum height 715mm
Minimum height 259mm
Extended Height To be updated
Compressed Height To be updated
Top Plate Width 289mm
Piston Width 261mm
1V 8104 Truck Air Spring Drawing
1V 8104 Truck Air Spring Suitable for Firestone W01-M58-8104 0
Delivery Information
  • Delivery Time: Orders are typically shipped within 30 business days after payment is received.
  • Packing Method: Brown carton packing; we can also pack according to your requirements.
  • Shipping Marks: Generally display weight and size. We can also make shipping marks according to your requirements.
  • Transportation Methods: Sea transportation, air transportation, express delivery, railway transportation and various combined transportation methods.
  • International Transport Notes: Due to international transportation requirements, we pack according to strict standards to avoid damage to the goods. If logistics information is stagnant during transportation, please wait patiently. If you have any questions, please contact us.

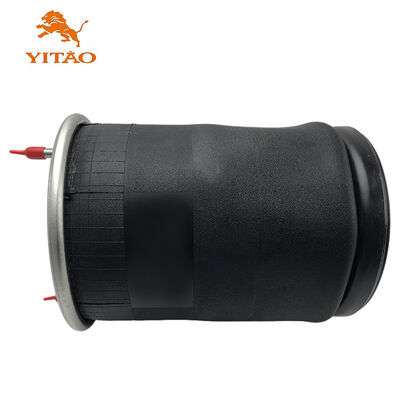

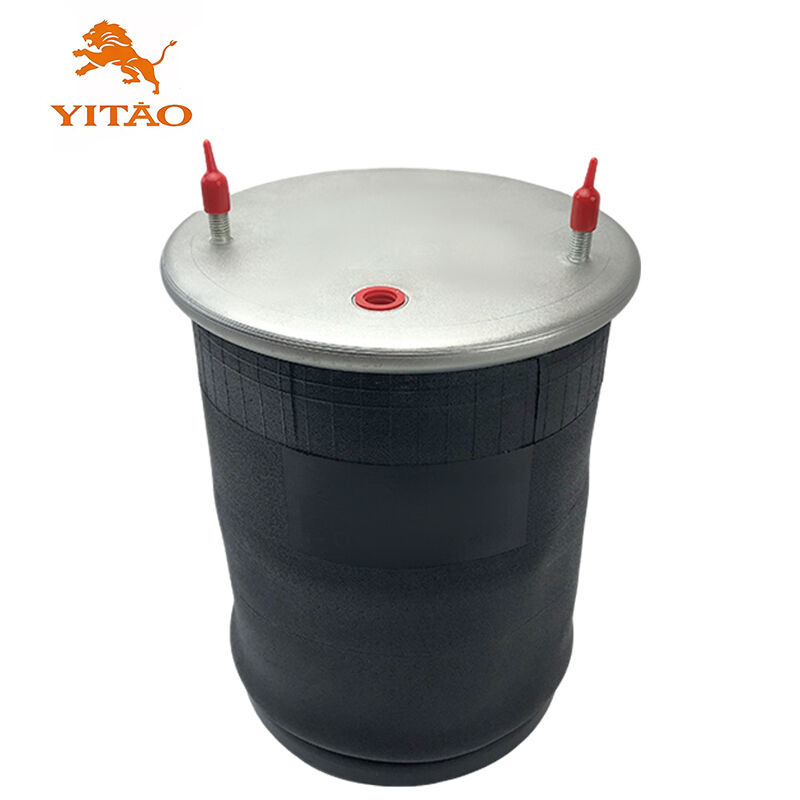

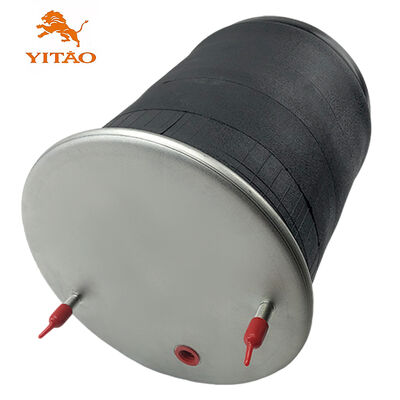

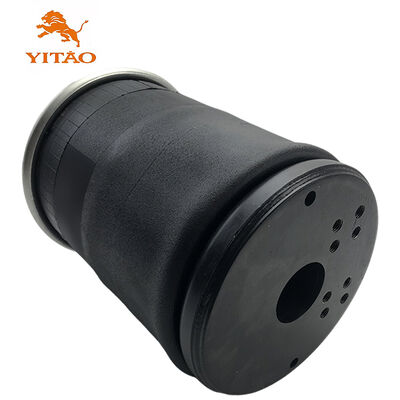

W01-M58-8104 C01-M58-1163 Truck Air Spring Real Pictures
1V 8104 Truck Air Spring Suitable for Firestone W01-M58-8104 1
1V 8104 Truck Air Spring Suitable for Firestone W01-M58-8104 2
1V 8104 Truck Air Spring Suitable for Firestone W01-M58-8104 3
1V 8104 Truck Air Spring Suitable for Firestone W01-M58-8104 4
1V 8104 Truck Air Spring Suitable for Firestone W01-M58-8104 5
Images shown are for reference only. Actual product may vary slightly.
