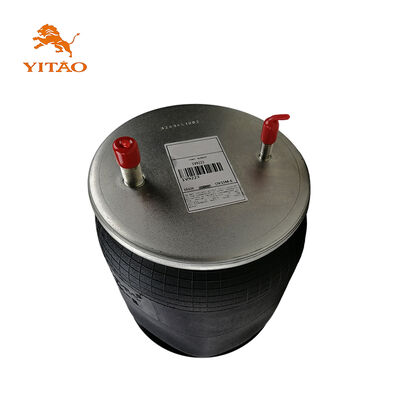

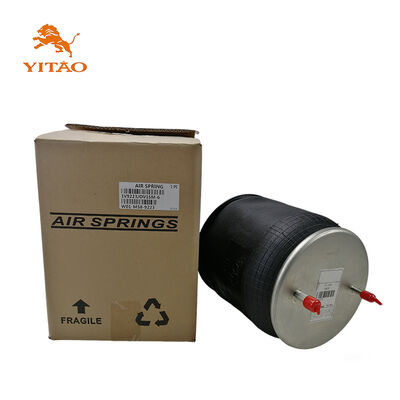

Air Spring Bellows for Semi‑Trailer OE Replacement Firestone W01-358-9223, Goodyear 1R12-188

Bescheinigung
CHINA Yitao Air Spring Group zertifizierungen
CHINA Yitao Air Spring Group zertifizierungen
Ich bin online Chat Jetzt

Air Spring Bellows for Semi‑Trailer OE Replacement Firestone W01-358-9223, Goodyear 1R12-188

Air Spring Bellows for Semi‑Trailer OE Replacement Firestone W01-358-9223, Goodyear 1R12-188
Air Spring Bellows for Semi‑Trailer OE Replacement Firestone W01-358-9223, Goodyear 1R12-188 Air Spring Bellows for Semi‑Trailer OE Replacement Firestone W01-358-9223, Goodyear 1R12-188 Air Spring Bellows for Semi‑Trailer OE Replacement Firestone W01-358-9223, Goodyear 1R12-188

Großes Bild :  Air Spring Bellows for Semi‑Trailer OE Replacement Firestone W01-358-9223, Goodyear 1R12-188

Produktdetails:
Herkunftsort: China
Markenname: YITAO
Zertifizierung: IATF16949
Modellnummer: 1V9223/1V 9223
Zahlung und Versand AGB:
Min Bestellmenge: 50 Stück
Preis: Negotiable in person
Verpackung Informationen: KARTON
Lieferzeit: 1 ~ 30 Tage
Zahlungsbedingungen: T/T
Versorgungsmaterial-Fähigkeit: 5000 Stück/Monat

Air Spring Bellows for Semi‑Trailer OE Replacement Firestone W01-358-9223, Goodyear 1R12-188

Beschreibung
OE-Nummer: W01-358-9223,1T15M-6,1R12-188,566243038,1R12-903,910-16P409,910-17.5P733,12884-01,12884-01A,8409,636 YITAO-Nummer: 1V 9223
Typ: LKW-Luftfeder Zustand: Brandneu
Garantie: 12 Monate Typische Lieferzeit: 3-10 Tage
Dichtungskonfiguration: Crimp-Abdeckplatte + vulkanisierte Dichtungsplatte Material: Naturkautschuk
Kolbenmaterial: Plastik Verpackung: Neutrale Verpackung oder kundenspezifische Verpackung
Hervorheben:

Air Spring Bellows for Semi-Trailer

,

Firestone W01-358-9223 air spring

,

Goodyear 1R12-188 replacement bellows

Air Spring Bellows for Semi‑Trailer OE Replacement Firestone W01-358-9223, Goodyear 1R12-188
Product Overview

Manufactured to specifications matching Firestone W01-358-9223 / Goodyear 1R12-188, this air spring fully replaces the original equipment and provides a comfortable and stable ride.

Cross References
Brand Reference Numbers Numbering Discrepancy
FirestoneW01-358-9223W013589223 / W01-358-9223 / W01 358 9223
Firestone1T15M-61T15M6 / 1T15M-6 / 1T15M 6
Goodyear1R12-1881R12188 / 1R12-188 / 1R12 188
Goodyear566243038:566243038
Goodyear1R12-9031R12903 / 1R12-903 / 1R12 903
Contitech910-16P40991016P409 / 910-16P409 / 910 16P409
Contitech910-17.5P73391017.5P733 / 910-17.5P733 / 910 17.5P733
Reyco12884-011288401 / 12884-01 / 12884 01
Reyco12884-01A1288401A / 12884-01A / 12884 01A
Triangle8409:8409
Triangle6363:6363
Hendrickson49185-2491852 / 49185-2 / 49185 2
Technical Specifications
Specifications Parameters
Outer diameterφ255
Weight7.811 kg
Package Dimensions28*28*37.5cm
Natural height506mm
Maximum height486mm
Minimum height166mm
Extended Height520mm
Compressed Height183mm
Top Plate Width231mm
Piston Width254mm
Product Drawings & Images
Air Spring Bellows for Semi‑Trailer OE Replacement Firestone W01-358-9223, Goodyear 1R12-188 0
Images shown are for reference only. Actual product may vary slightly.
Factory Showcase
Air Spring Bellows for Semi‑Trailer OE Replacement Firestone W01-358-9223, Goodyear 1R12-188 1
Quality Control Inspection
Air Spring Bellows for Semi‑Trailer OE Replacement Firestone W01-358-9223, Goodyear 1R12-188 2
Manufacturing Equipment
Air Spring Bellows for Semi‑Trailer OE Replacement Firestone W01-358-9223, Goodyear 1R12-188 3
Assembly Line Operations
Air Spring Bellows for Semi‑Trailer OE Replacement Firestone W01-358-9223, Goodyear 1R12-188 4
Assembly and Forming
Air Spring Bellows for Semi‑Trailer OE Replacement Firestone W01-358-9223, Goodyear 1R12-188 5
Vulcanization Shop
Air Spring Bellows for Semi‑Trailer OE Replacement Firestone W01-358-9223, Goodyear 1R12-188 6
Delivery Information
  • Delivery Time: Orders are typically shipped after payment is received. Depending on order size, shipment will be completed within 1-30 business days
  • Packing Method: Brown carton packing; we can also pack according to your requirements
  • Shipping Marks: Generally display weight and size. We can also make shipping marks according to your requirements
  • Transportation Methods: Sea transportation, air transportation, express delivery, railway transportation and various combined transportation methods
  • International Transport Notes: Due to international transportation requirements, we pack according to strict standards to avoid damage. If logistics information is stagnant during transportation, please wait patiently. Contact us with any questions
Frequently Asked Questions
IS THE SAMPLE AVAILABLE?

Yes, we typically send samples via TNT, DHL, FEDEX or UPS. Delivery takes approximately 3 days. Customers are responsible for sample costs and airmail freight. Sample costs will be refunded after order placement.

WHAT IS YOUR WARRANTY TERM?

Full container load orders receive 1% free spare parts. Export products carry a 12-month warranty from the shipment date. For product failures within the warranty period, customers are responsible for replacement part costs.

CAN I USE MY OWN LOGO AND DESIGN ON PRODUCTS?

Yes, OEM services are welcomed.

I CANNOT FIND THE ITEMS I WANT FROM YOUR WEBSITE, CAN YOU OFFER THE PRODUCTS I NEED?

Yes. We provide product sourcing services for our customers. Please provide detailed information about the items you require.
