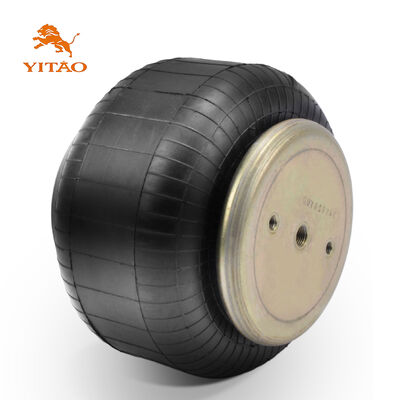

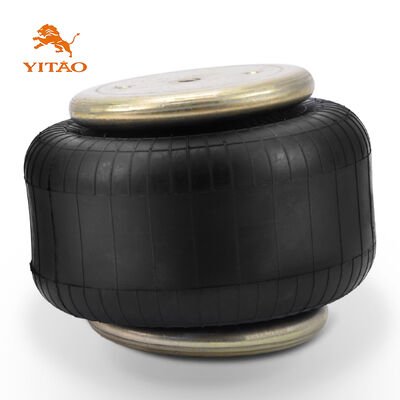

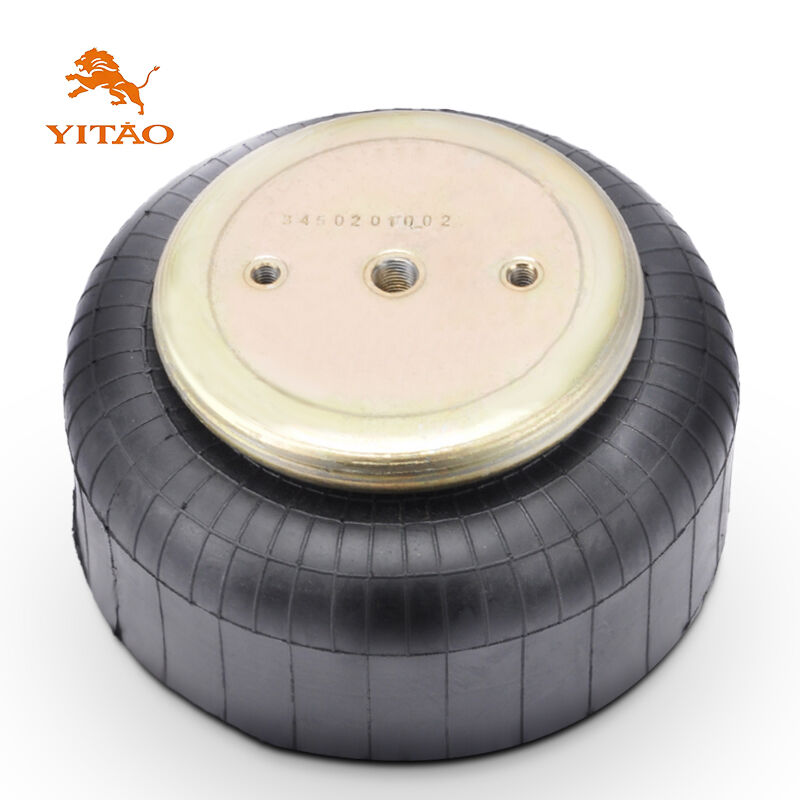

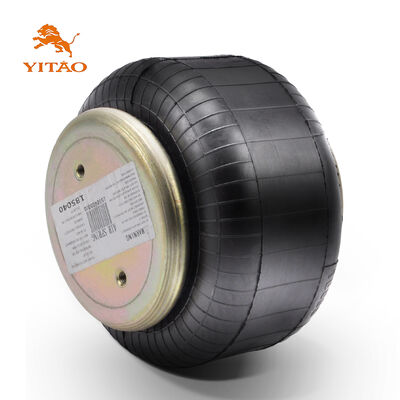

Firestone W01-358-7598 1B Single Convoluted Air Spring

Firestone W01-358-7598 1B Single Convoluted Air Spring
Firestone W01-358-7598 1B Single Convoluted Air Spring Firestone W01-358-7598 1B Single Convoluted Air Spring Firestone W01-358-7598 1B Single Convoluted Air Spring Firestone W01-358-7598 1B Single Convoluted Air Spring

Großes Bild :  Firestone W01-358-7598 1B Single Convoluted Air Spring

Produktdetails:
Herkunftsort: China
Markenname: YITAO
Zertifizierung: IATF16949
Modellnummer: 1B 5040/01B 580
Zahlung und Versand AGB:
Min Bestellmenge: 50 Pieces
Preis: Negotiable in person
Verpackung Informationen: Karton
Lieferzeit: 1 ~ 30 Tage
Zahlungsbedingungen: T/T
Versorgungsmaterial-Fähigkeit: 5000 Stück/Monat
Kontakt

Firestone W01-358-7598 1B Single Convoluted Air Spring

Beschreibung
OE-Nummer: W01-358-7598 1B8-580 YITAO-Nummer: 1B 5040
Lieferzeit: 3-10 Tage Garantie: 12 Monate
Typ: Luftfeder, Federung Hauptmaterial: Kautschuk+Metall
Verpackung: Neutrale Verpackung oder kundenspezifische Verpackung
Hervorheben:

Firestone single convoluted air spring

,

Firestone 1B air ride spring

,

W01-358-7598 air spring replacement

Firestone W01-358-7598 1B Single Convoluted Air Spring
High-quality single convoluted air spring designed for optimal performance and durability in industrial applications.
OE Manufacturer Numbers
  • Firestone W01-358-7598
  • Goodyear 1B8-580
Cross References
Brand Reference Numbers Numbering Discrepancy
Firestone W01-358-7598 W013587598 / W01-358-7598 / W01 358 7598
Goodyear 1B8-580 1B8580 / 1B8-580 / 1B8 580
Technical Specifications
Specifications Parameters
Outer diameter φ190
Weight 4.6kg/2PCS
Net weight 2.13kg
Package Dimensions 25*25*25.5cm
Natural height 150mm
Maximum height 50mm
Minimum height 170mm
Extended Height 180mm
Compressed Height 60mm
Top Plate Width 135mm
Piston Width 135mm
Product Drawings & Images
Firestone W01-358-7598 1B Single Convoluted Air Spring 0
Images shown are for reference only. Actual product may vary slightly.
Firestone W01-358-7598 1B Single Convoluted Air Spring 1
Factory Overlook
Firestone W01-358-7598 1B Single Convoluted Air Spring 2
Quality Control Inspection
Firestone W01-358-7598 1B Single Convoluted Air Spring 3
Manufacturing Equipment
Firestone W01-358-7598 1B Single Convoluted Air Spring 4
R&D Center
Firestone W01-358-7598 1B Single Convoluted Air Spring 5
Assembly and Forming
Firestone W01-358-7598 1B Single Convoluted Air Spring 6
Vulcanization Shop
Delivery Information
  • Delivery Time: Orders are typically shipped after payment is received. Depending on order size, shipment will be completed within 1-30 business days
  • Packing Method: Brown carton packing; we can also pack according to your requirements
  • Shipping Marks: Generally display weight and size. We can also make shipping marks according to your requirements
  • Transportation Methods: Sea transportation, air transportation, express delivery, railway transportation and various combined transportation methods
  • International Transport Notes: Due to international transportation requirements, we pack according to strict standards to avoid damage. If logistics information is stagnant during transportation, please wait patiently. Contact us with any questions
Frequently Asked Questions
IS THE SAMPLE AVAILABLE?
Yes, we typically send samples via TNT, DHL, FEDEX or UPS. Delivery takes approximately 3 days. Customers are responsible for sample costs and airmail freight. Sample costs will be refunded after order placement.
WHAT IS YOUR WARRANTY TERM?
Full container load orders receive 1% free spare parts. Export products carry a 12-month warranty from the shipment date. For product failures within the warranty period, customers are responsible for replacement part costs.
CAN I USE MY OWN LOGO AND DESIGN ON PRODUCTS?
Yes, OEM services are welcomed.
I CANNOT FIND THE ITEMS I WANT FROM YOUR WEBSITE, CAN YOU OFFER THE PRODUCTS I NEED?
Yes. We provide product sourcing services for our customers. Please provide detailed information about the items you require.
