Firestone W01-358-7180 Goodyear 2B12-425 Double Convoluted Air Spring

Firestone W01-358-7180 Goodyear 2B12-425 Double Convoluted Air Spring
Firestone W01-358-7180 Goodyear 2B12-425 Double Convoluted Air Spring Firestone W01-358-7180 Goodyear 2B12-425 Double Convoluted Air Spring Firestone W01-358-7180 Goodyear 2B12-425 Double Convoluted Air Spring Firestone W01-358-7180 Goodyear 2B12-425 Double Convoluted Air Spring Firestone W01-358-7180 Goodyear 2B12-425 Double Convoluted Air Spring

Großes Bild :  Firestone W01-358-7180 Goodyear 2B12-425 Double Convoluted Air Spring

Produktdetails:
Herkunftsort: China
Markenname: YITAO
Zertifizierung: IATF16949
Modellnummer: 2B 5330/02B 330
Zahlung und Versand AGB:
Min Bestellmenge: 50 Pieces
Preis: Negotiable in person
Verpackung Informationen: Karton
Lieferzeit: 1 ~ 30 Tage
Zahlungsbedingungen: T/T
Versorgungsmaterial-Fähigkeit: 5000 Stück/Monat
Kontakt

Firestone W01-358-7180 Goodyear 2B12-425 Double Convoluted Air Spring

Beschreibung
OE-Nummer: W01-358-7180,W01-358-7122,FD330-22363,2B12-425,311,578923309,VSP2B22R7180,57007180,AS01541G OE NO2: 01881F,055000001,6316,4363,8030190,SC2075,1685179C1,1VA1816,1003587180C
YITAO-Nummer: 2B 5330 Lieferzeit: 3-10 Tage
Garantie: 12 Monate Typ: Luftfeder, Federung
Hauptmaterial: Kautschuk+Metall Verpackung: Neutrale Verpackung oder kundenspezifische Verpackung
Hervorheben:

Firestone double convoluted air spring

,

Goodyear 2B12-425 air ride spring

,

W01-358-7180 air spring with warranty

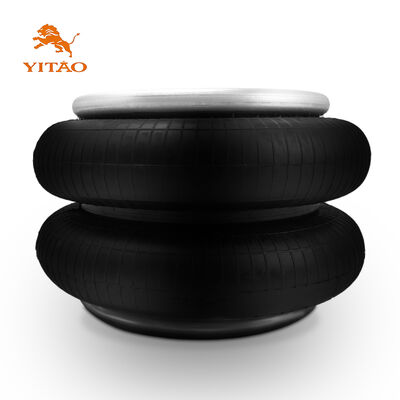

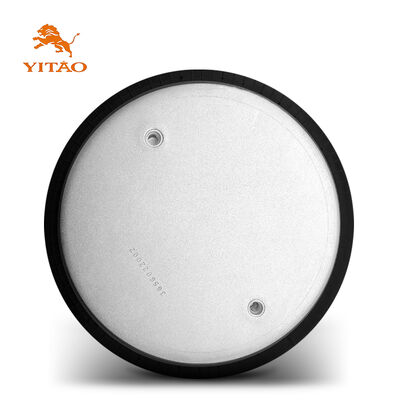

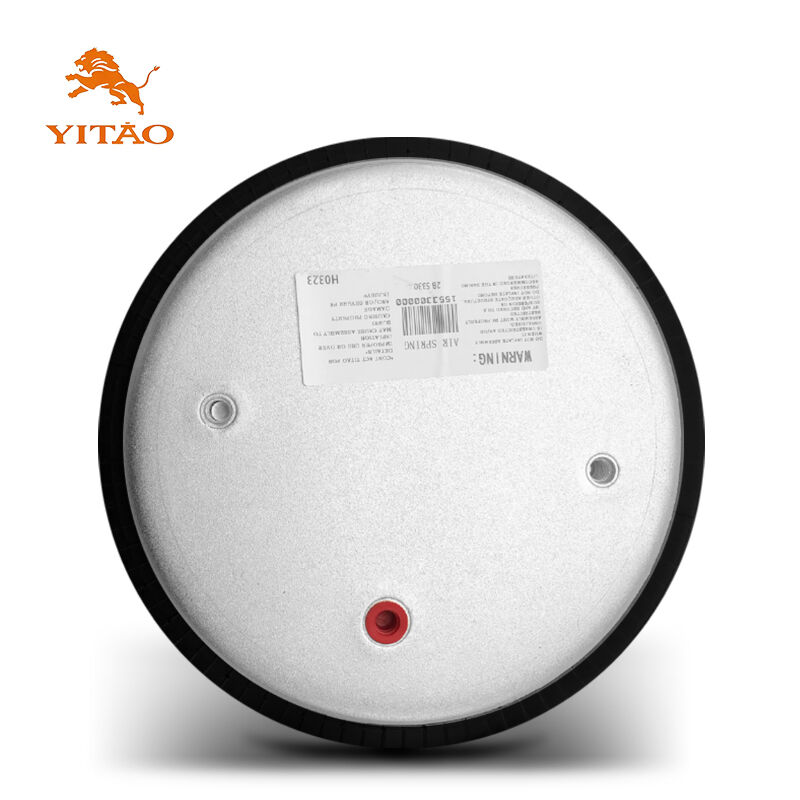

Firestone W01-358-7180 Goodyear 2B12-425 Double Convoluted Air Spring
High-quality double convoluted air spring designed for optimal performance and durability in industrial applications.
OE Manufacturer Numbers
  • W01-358-7180, W01-358-7122, FD330-22363, 2B12-425, 311, 578923309
  • VSP2B22R7180, 1003587180C, 57007180, AS01541G, 01881F
  • 055000001, 6316, 4363, 8030190, SC2075, 1685179C1, 1VA1816
Cross References
Brand Reference Numbers Numbering Discrepancy
FirestoneW01-358-7180W013587180 / W01-358-7180 / W01 358 7180
FirestoneW01-358-7122W013587122 / W01-358-7122 / W01 358 7122
ContitechFD330-22363FD33022363 / FD330-22363 / FD330 22363
Goodyear2B12-4252B12425 / 2B12-425 / 2B12 425
Goodyear578923309:578923309
VibracousticVSP2B22R7180:VSP2B22R7180
Ridewell1003587180C:1003587180C
SAF Holland57007180:57007180
Watson&ChalinAS01541G:AS01541G
Watson&Chalin01881F:01881F
Peerless055000001:055000001
Triangle6316:6316
Triangle4363:4363
EI Ride8030190:8030190
LelandSC2075:SC2075
Navistar1685179C1:1685179C1
Hendrickson1VA1816:1VA1816
Technical Specifications
Specifications Parameters
Outer diameterφ298
Weight5.435kg
Net weight4.872kg
Package Dimensions34*34*23.5cm
Natural height214mm
Maximum height80mm
Minimum height290mm
Extended Height305mm
Compressed Height81mm
Top Plate Width231mm
Piston Width231mm
Product Drawings & Images
Firestone W01-358-7180 Goodyear 2B12-425 Double Convoluted Air Spring 0
Firestone W01-358-7180 Goodyear 2B12-425 Double Convoluted Air Spring 1
Factory Overlook
Firestone W01-358-7180 Goodyear 2B12-425 Double Convoluted Air Spring 2
Quality Control Inspection
Firestone W01-358-7180 Goodyear 2B12-425 Double Convoluted Air Spring 3
Manufacturing Equipment
Firestone W01-358-7180 Goodyear 2B12-425 Double Convoluted Air Spring 4
R&D Center
Firestone W01-358-7180 Goodyear 2B12-425 Double Convoluted Air Spring 5
Assembly and Forming
Firestone W01-358-7180 Goodyear 2B12-425 Double Convoluted Air Spring 6
Vulcanization Shop
Images shown are for reference only. Actual product may vary slightly.
Delivery Information
  • Delivery Time: Orders are typically shipped after payment is received. Depending on order size, shipment will be completed within 1-30 business days
  • Packing Method: Brown carton packing; we can also pack according to your requirements
  • Shipping Marks: Generally display weight and size. We can also make shipping marks according to your requirements
  • Transportation Methods: Sea transportation, air transportation, express delivery, railway transportation and various combined transportation methods
  • International Transport Notes: Due to international transportation requirements, we pack according to strict standards to avoid damage. If logistics information is stagnant during transportation, please wait patiently. Contact us with any questions
Frequently Asked Questions
IS THE SAMPLE AVAILABLE?
Yes, we typically send samples via TNT, DHL, FEDEX or UPS. Delivery takes approximately 3 days. Customers are responsible for sample costs and airmail freight. Sample costs will be refunded after order placement.
WHAT IS YOUR WARRANTY TERM?
Full container load orders receive 1% free spare parts. Export products carry a 12-month warranty from the shipment date. For product failures within the warranty period, customers are responsible for replacement part costs.
CAN I USE MY OWN LOGO AND DESIGN ON PRODUCTS?
Yes, OEM services are welcomed.
I CANNOT FIND THE ITEMS I WANT FROM YOUR WEBSITE, CAN YOU OFFER THE PRODUCTS I NEED?
Yes. We provide product sourcing services for our customers. Please provide detailed information about the items you require.
